V15a+ Dual Output Hearing Loop Driver

V15a

Our highly efficient and compact V15a+ is a constant current, dual output hearing loop driver with integral phase shifter for multiloop configuration. It is suitable for small and medium sized facilities and venues.

It has Class-D amplifier output stages, and an audio subsystem built around an advanced DSP core. Combined with a powerful CPU to ensure peak performance, the V15a+ uses cutting edge technology proven in the pro audio world to achieve life-like speech and first-class music reproduction.

Features

  • DSP controlled automatic gain control and high frequency compensation for metal loss
  • 2 X 90° phase shifted (DSP controlled) Class-D amplifier output stages capable of delivering 5Arms @ >15Vrms
  • Ultra-efficient power utilization (up to 90% efficient)
  • True constant current output stage
  • Simple user interface
  • Backlit LCD display
  • Continuous self-testing
  • Audio Time Delay
  • Switchable AGC (Automatic Gain Control)
  • Enhanced loop diagnostics
  • Integrated protection circuits with temperature, voltage, short circuit and DC detection
  • Compact half-width 1U chassis

Product Sheet

User Guide

System Components

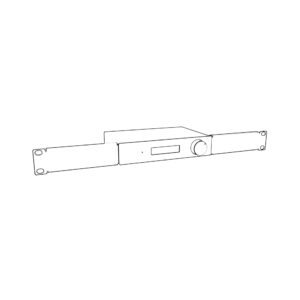

V-RME Rack Mount Ears (Included)

The V-Series Rack Mount Ears are 1RU, fits into a standard 19`` rack and is designed for one V series driver.

PS-60 Power Supply

The PS-60 Power Supply is a Level VI power supply.

Accessories

RX20 Loop Listener

The Loop Listener is a compact listening device, allowing installers to listen to a hearing loop system as if they were wearing a hearing device switched to the T-Coil Program.

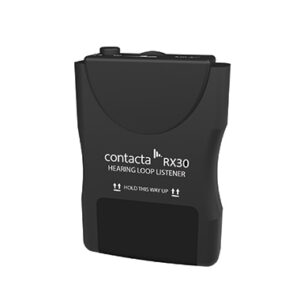

RX30 Rechargeable Loop Listener

The RX30 Loop Listener is a rechargeable compact listening device, allowing users to listen to a hearing loop system as if they were wearing a hearing device switched to the T-Coil Program.

hearing-hub-icon

Hearing Loop Hub

Visit our Hearing Loop Hub to see how hearing loops work, what different types of loops can do for your business, the latest information on legislations and standards, and frequently asked questions.
