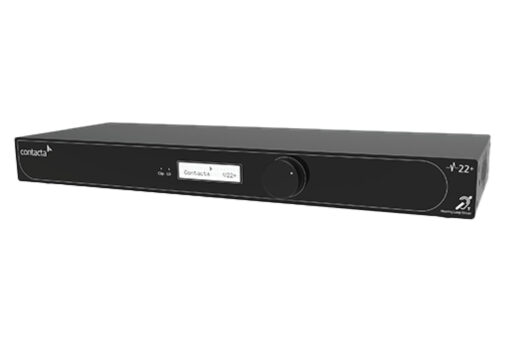

V22+ Single Output Hearing Loop Driver

V22+ 380x380

The V22+ is a powerful constant current, single output hearing loop driver which contains a high power Class D output stage. It is suitable for hearing loop systems in medium to large venues for perimeter and figure-eight loop layouts.

The built-in Line Output allows the driver to be daisy chained to additional V22+ for larger installations. Note: The Line Output cannot be used to create a phased array configuration.

Product Features

  • DSP controlled automatic gain control and high frequency compensation for metal loss
  • Single output driver
  • Class-D amplifier output stage capable of delivering 12Arms @ >22Vrms
  • Ultra-efficient power utilization (up to 90% efficient)
  • True constant current output stage
  • Simple user interface
  • Backlit LCD display
  • Sleep mode
  • Continuous self-testing
  • Integrated protection circuits with temperature, voltage, short circuit and DC protection
  • Acoustic Time Delay

Accessories

RX20 Loop Listener

The Loop Listener is a compact listening device, allowing installers to listen to a hearing loop system as if they were wearing a hearing device switched to the T-Coil Program.

RX30 Rechargeable Loop Listener

The RX30 Loop Listener is a rechargeable compact listening device, allowing users to listen to a hearing loop system as if they were wearing a hearing device switched to the T-Coil Program.

XLR to Euroblock Cable

This adaptor cable provides an XLR connection to our V22+ Hearing Loop Driver's Euroblock style terminal connection.

hearing-hub-icon

Hearing Loop Hub

Visit our Hearing Loop Hub to see how hearing loops work, what different types of loops can do for your business, the latest information on legislations and standards, and frequently asked questions.
